Case studies

ETA PE-K Wood Pellet, District Heating solution pays off for Wayside Farm Blake Ecotec supply Renewable heatings and hot water to farmhouse, offices and holiday lets for Somerset Farm

The Client;
Mr. Doug Ryall.

The Property;
Wayside Farm, Evercreech, Shepton Mallet, Somerset.

The Project Included;

  • ETA PE-K 70kW Wood Pellet Boiler Solution.
  • 1,500 litre Akvarterm accumulator tank.
  • Our District Heating Solution provides heating and hot water to:
    • Mr. Ryall's personal property (140m2),
    • 4 Holiday Lets (350m2),
    • Offices (200m2).
  • All buildings on site have fail-safe Gas Boilers integrated into the solution.
  • Touch screen monitor to allow the customer to easily monitor boiler performance.
  • Full Project Management, including design, installation, maintenance and RHI Application.

Pay Back Period;
4-5 years.

RHI Payments;
A project of this size would gain approximately £265,000 in Government funded payments over the 20 year period.

Total Cost;

The Project Requirement
A stones throw from the famous Royal Bath & West Showground, Mr. Ryall's large Wayside Farm site encompasses a private dwelling, 4 holiday lets, offices, land and a lake.

Mr Ryall required an intelligent, green energy solution to supply heating and hot water to all buildings across his site.

Project Summary

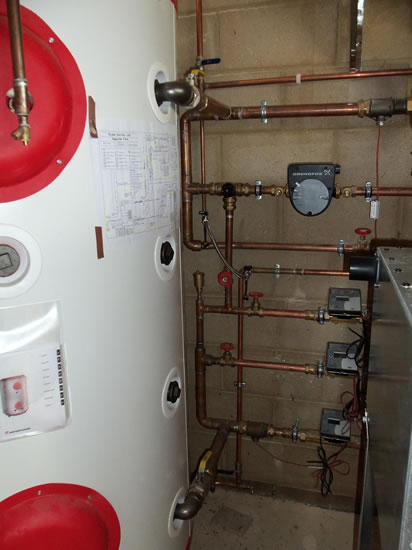

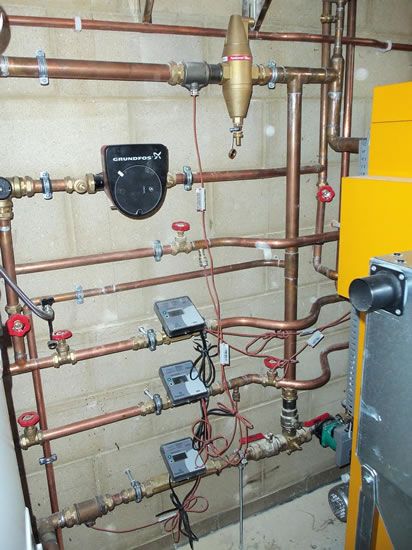

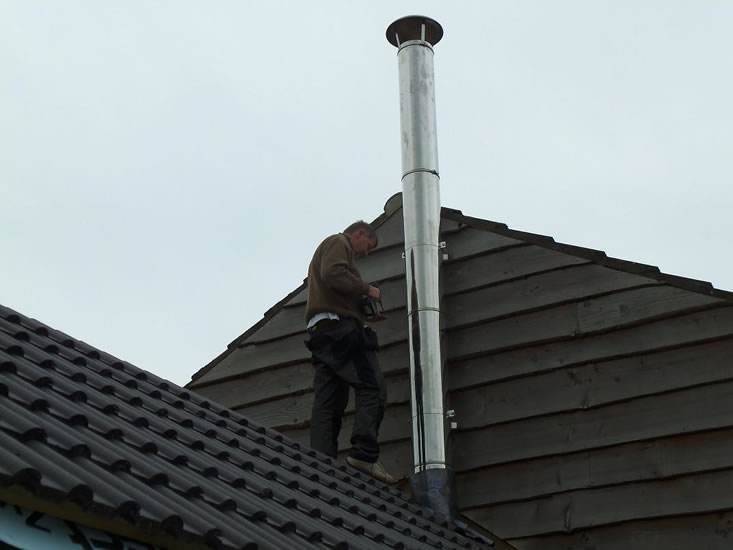

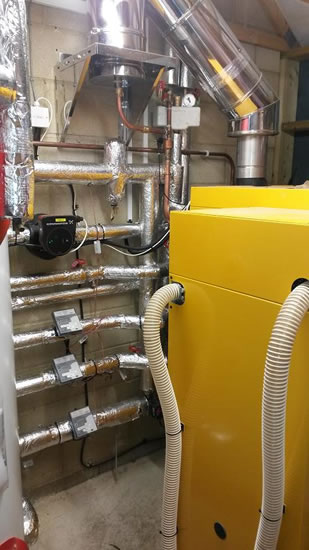

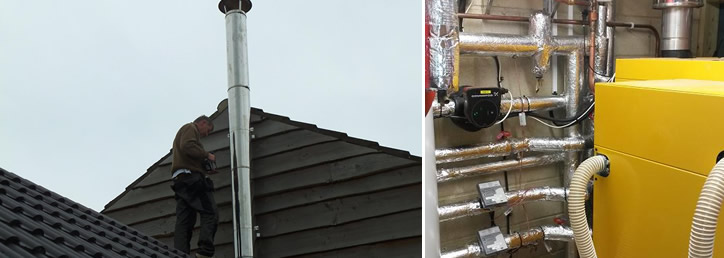

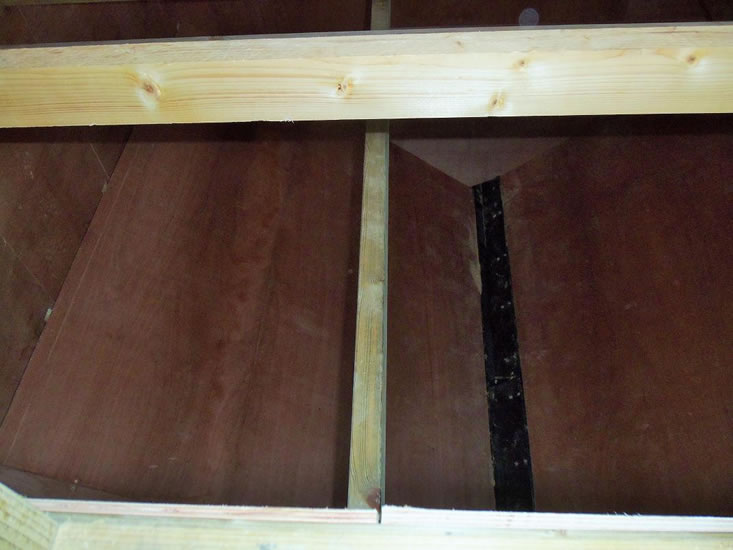

The team designed, installed and commissioned a full domestic heating solution to provide heating and hot water to the entire site. A purpose built boiler room extension was constructed to house the 70kW ETA Wood Pellet solution, 1,500 litre accumulator tank and 180mm flue.

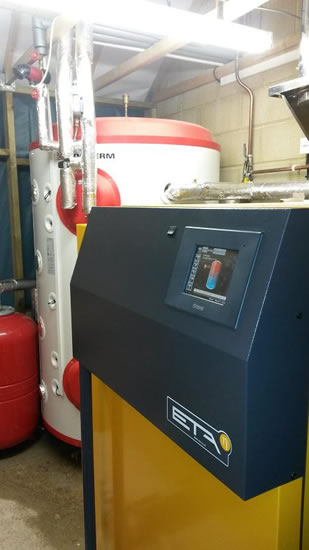

Our District Heating solution means that a single boiler can provide to multiple buildings, removing the need for multiple boilers and dramatically reducing the costs on servicing bills. The ETA PE-K is a fully automatic, vacuum loading, self cleaning solution. The boiler has a 60kg capacity pellet bin that requires three to four ten minute feeds per day and the automatic cleaning system simply removes ash into a detachable ash box.

The solution works at 92% efficiency compared to the properties previous oil system which worked at only 80%. Mr. Ryall also saves considerably on fuel costs; the biomass wood pellet cost 4.0p per kilowatt of heat produced in comparison to a much higher 6p per kilowatt for the oil system originally employed on the site.

We installed over 200 metres of underground pipe to connect the new Biomass Boiler to the properties, and integrated a gas heating system to work interchangeably with the biomass solution, acting fail safe.

The Renewable Heat Incentive (RHI)
Compliant within the Non-Domestic Renewable Heat Incentive (RHI) scheme, Mr Ryall will receive payments over a 20 year period. The District Heating solution will deliver substantial net fuel cost savings of £127,896 across the 20 year scheme. Our installation will enable Mr. Ryall to receive RHI payments of 8.6p per kWh of heat generated by the system through submitting quarterly meter readings to OFGEM, a total of approximately £265,000 in RHI Payments alone.

Add this to the savings made on fuel and the project will gain approximately £392,350 in additional income over 20 years. The RHI payments and the fuel cost savings will see the initial outlay paid off in just under 5 years, before turning a profit for the remaining 15 years of the scheme.

< Back to Case Studies
